Electric Wheelchair Conversion Kit – DIY 24V 180W Dual Motor 8Inch Dual Wheel | Golden Motor
Electric Wheelchair Conversion Kit
Transform any standard manual wheelchair into a fully electric, joystick-controlled wheelchair. Designed for the elderly, disabled, and caregivers seeking independence and mobility freedom — without the cost of buying a brand new electric wheelchair.
Powered by dual 180W brushless gearless hub motors and a smooth sine wave controller, this kit delivers quiet, comfortable, and reliable performance. The ergonomic joystick gives full directional control, speed adjustment, battery monitoring, and horn — all at the rider's fingertips.
Technical Specifications
| Motor Type | Brushless, Gearless Hub Motor |
| Controller | Sine Wave Controller |
| Voltage | 24V |
| Rated Power | 180W x 2 (360W Total) |
| Tire Diameter | 8 inches |
| Max Load | 120 kg (264 lbs) |
| Max Speed | 6 km/h |
| Max Slope | 9° |

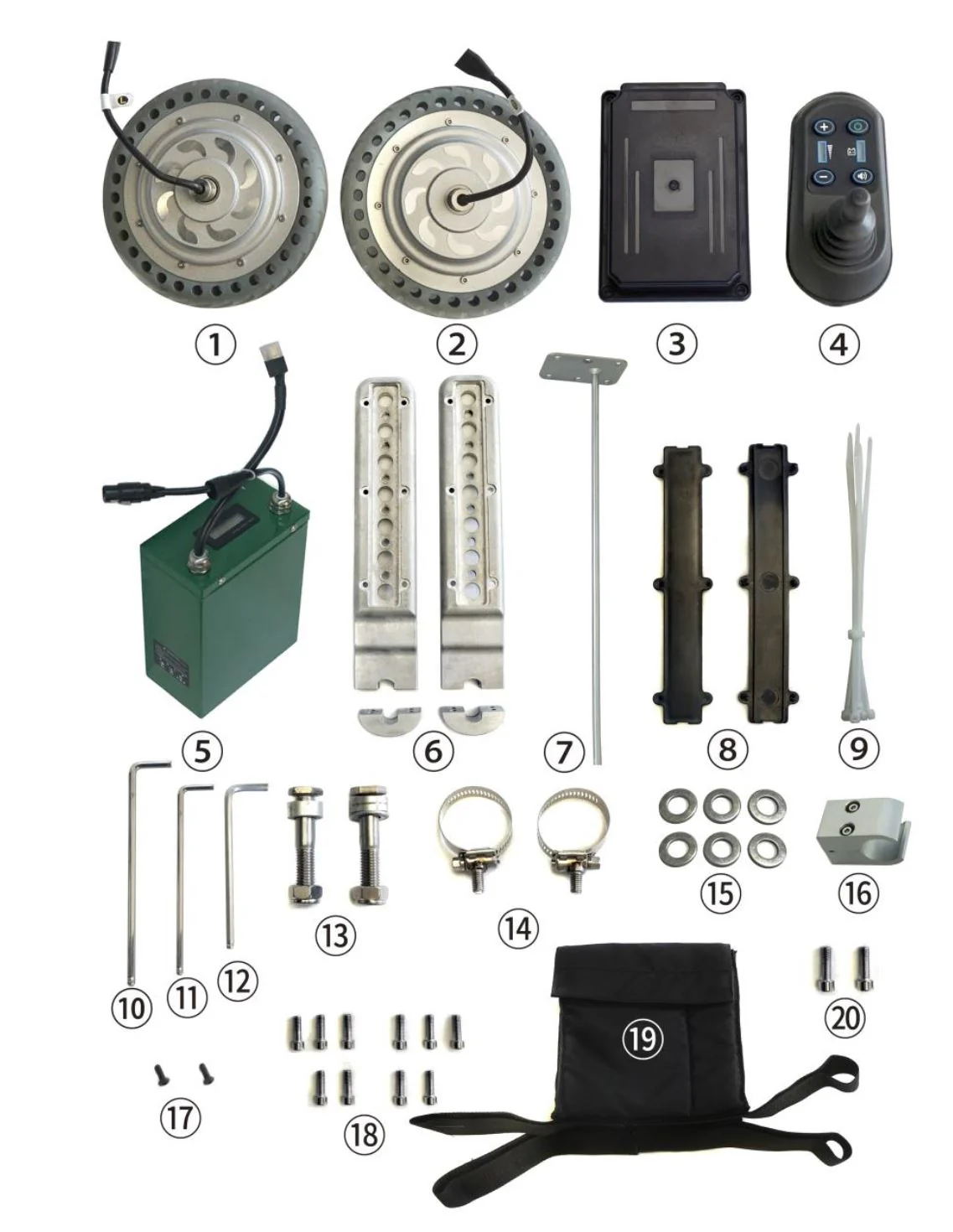

What's in the Box
- Left & Right Motor Wheels
- Sine Wave Controller
- Joystick Panel
- Motor Brackets x2
- Joystick Stand & Fixing Bracket
- Plastic Covers x2
- Battery & Controller Bag
- Full Mounting Hardware (Screws, Hoops, Spacers)
- Allen Wrench Set (3mm, 4mm, 5mm)
- Cable Ties x10
Joystick Panel Controls
- On/Off – Press to power on or off
- Acceleration (+) – Increase speed gear
- Deceleration (–) – Decrease speed gear
- Speed Gear Indicator – LED display of current gear
- Battery Indicator – Real-time battery level display
- Horn – Press to sound, release to stop
- Brake Release – Hold + and – together until beep to release brakes for manual pushing
Key Features
- Dual Brushless Hub Motors – Two independent 180W motors for smooth, powerful, near-silent drive
- Sine Wave Controller – Vibration-free, whisper-quiet operation
- Universal DIY Fit – Fits most standard manual wheelchairs with anti-tip wheels
- LiFePO4 Battery Ready – Compatible with the safest lithium battery chemistry available
- Electromagnetic Brakes – Automatic brake engagement with fault detection for safety
- All Hardware Included – No extra tools or parts needed for installation
Who Is This Kit For?
- Elderly individuals who struggle with manual wheelchair propulsion
- People recovering from injury or illness needing powered assistance
- Caregivers looking to reduce physical strain of pushing a wheelchair
- Anyone who wants to convert their existing wheelchair affordably
Important Notes
- Wheelchair must have a minimum frame load capacity of 120 kg
- Anti-tip wheels are required — do not install on wheelchairs without them
- Maximum slope angle is 9° — always drive forwards on slopes
- Do not use while charging
- Tighten all screws after first week of use and check monthly
Why Golden Motor?
- 1-Year Full Warranty on all products
- Free Shipping on orders over $500 to US & Canada
- Expert Support Team – [email protected]
- 26+ Years of electric motor experience
